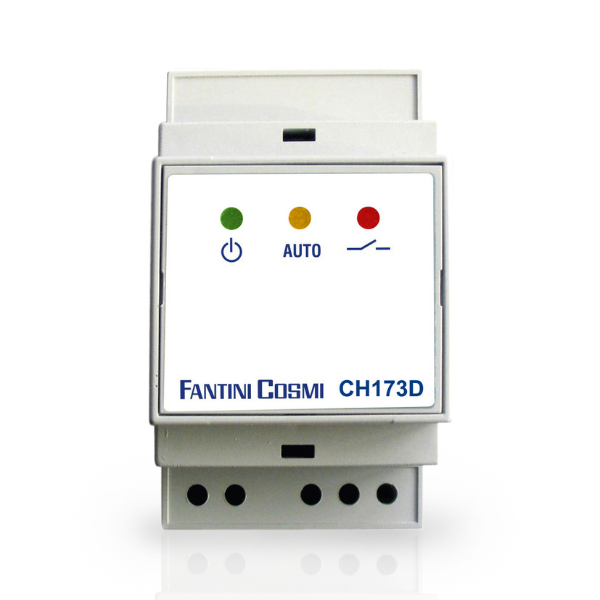

Radio actuator for Intellitherm and radio frequency thermostats (CH173D)

Brand
Fantini Cosmi - Italy

CH173D modular actuator for the remotely control via radio waves of the heating and air-conditioning installations, for C57RF, C58RF chronothermostats and CH115RF radio frequency thermostats.

General Features: Storage and transport ambient temperature: -25 ÷ 60°C; Receiver: OOK 868,350 MHz; Sensibility: -104 dBm; Pollution degree 2; Software class A; Double insulation; Type of action: 1B (micro disconnection); Pulse voltage 4000V.

Electric Features: Power supply: 230V 50 Hz; Absorbed power: 2VA; Contacts rating: 5(3)A 250Vac; Voltage-free switching contacts; Type of action: 1B (micro disconnection); Pulse voltage: 4000V.

Select Item

CODE INSTALLATION POWER SUPPLY BODY ADMISSIBLE TEMPERATURE CONTACTS RATING PROTECTION DEGREE

CH173D DIN rail 230Vac 50Hz - 10 ÷ 45 °C 5(3)A 250Vac IP20

Contacts

Address

P.O. Box # 68422, Dammam 31527, Saudi Arabia
Contact

Tel:+966 13 8050261, Fax: +966 13 8288855
Email

info@solidenergy-sa.com

My Account

Address

P.O. Box # 68422, Dammam 31527, Saudi Arabia
Contact

Tel:+966 13 8050261, Fax: +966 13 8288855
Email

info@solidenergy-sa.com

Radio actuator for Intellitherm and radio frequency thermostats (CH173D)

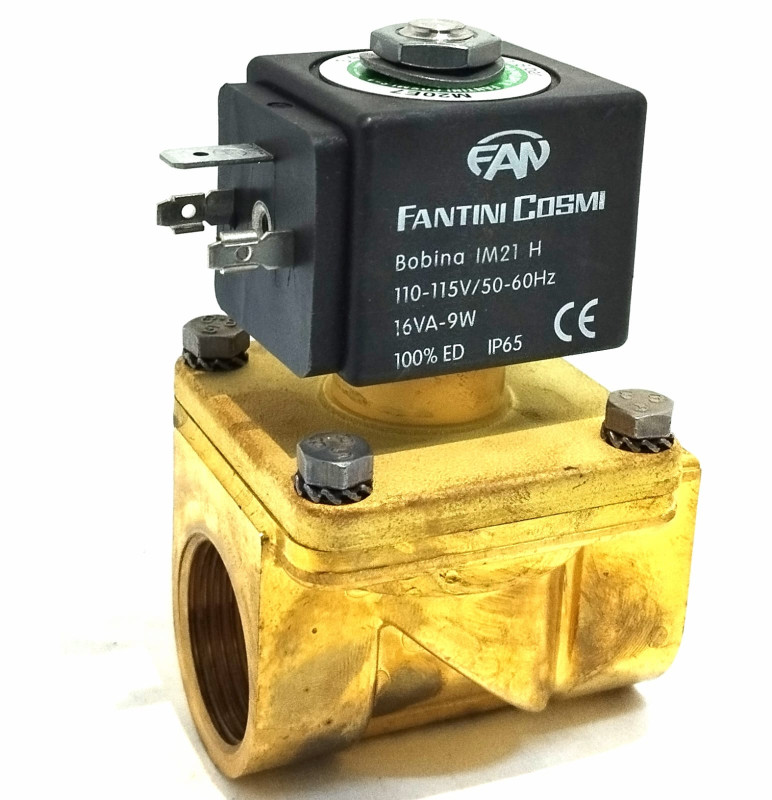

Direct operation solenoid valve bodies, normally-closed(M20B3-M20C5-M20D5-M20E7)

Direct operation solenoid valve bodies, normally-open(M29C13-M29D13-M29E20-M29F25-M29G35-M29H40-M29I50)

Servo-assisted diaphragm valve bodies, normally-closed(M23C13-M23D13-M23E20-M23F25-M23G35-M23H40-M23I50)

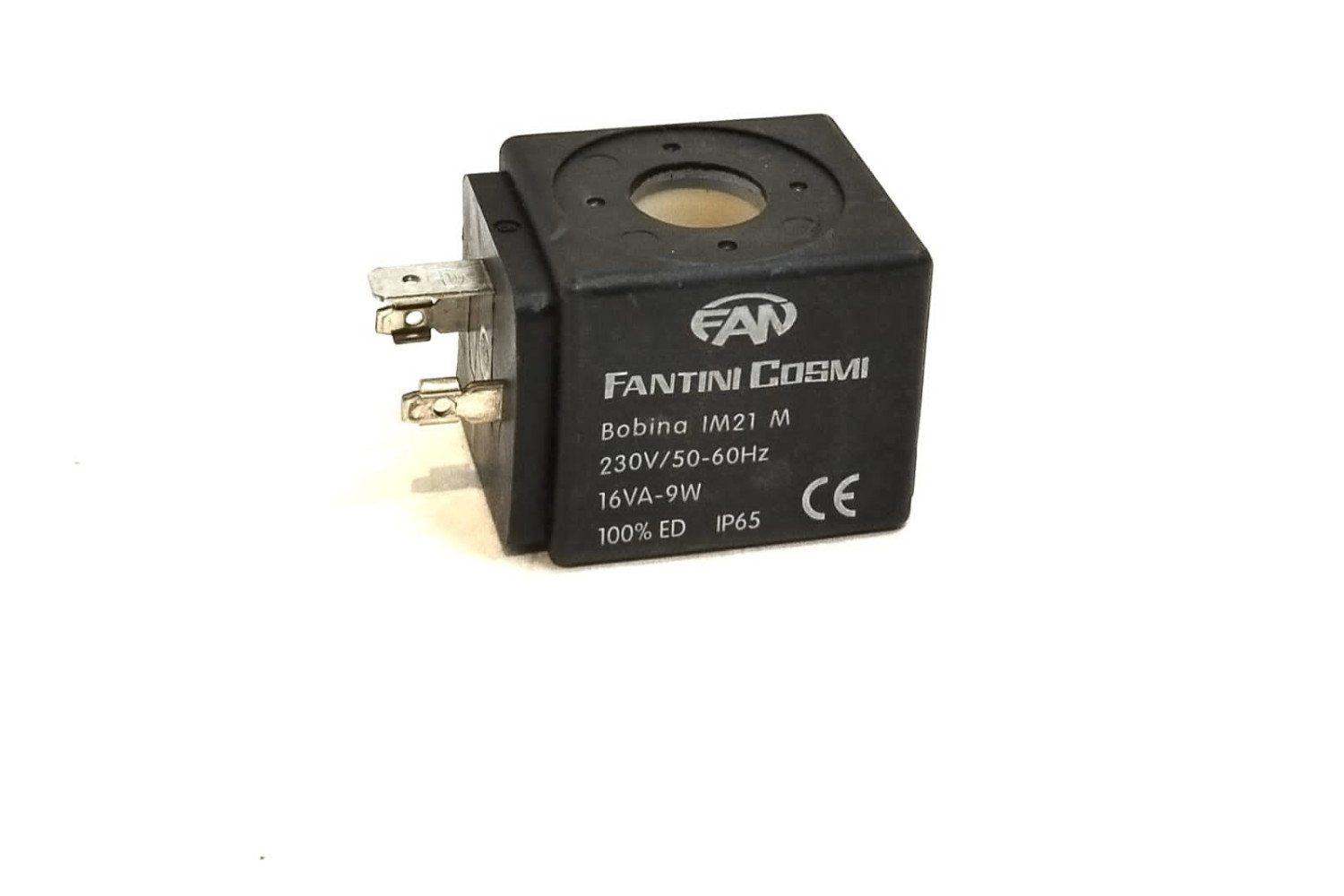

Control coils for solenoid valve(IM21D-IM21F-IM21H-IM21M-IM22-IM22A-IM29A-IM29F-IM29M-IM30A)

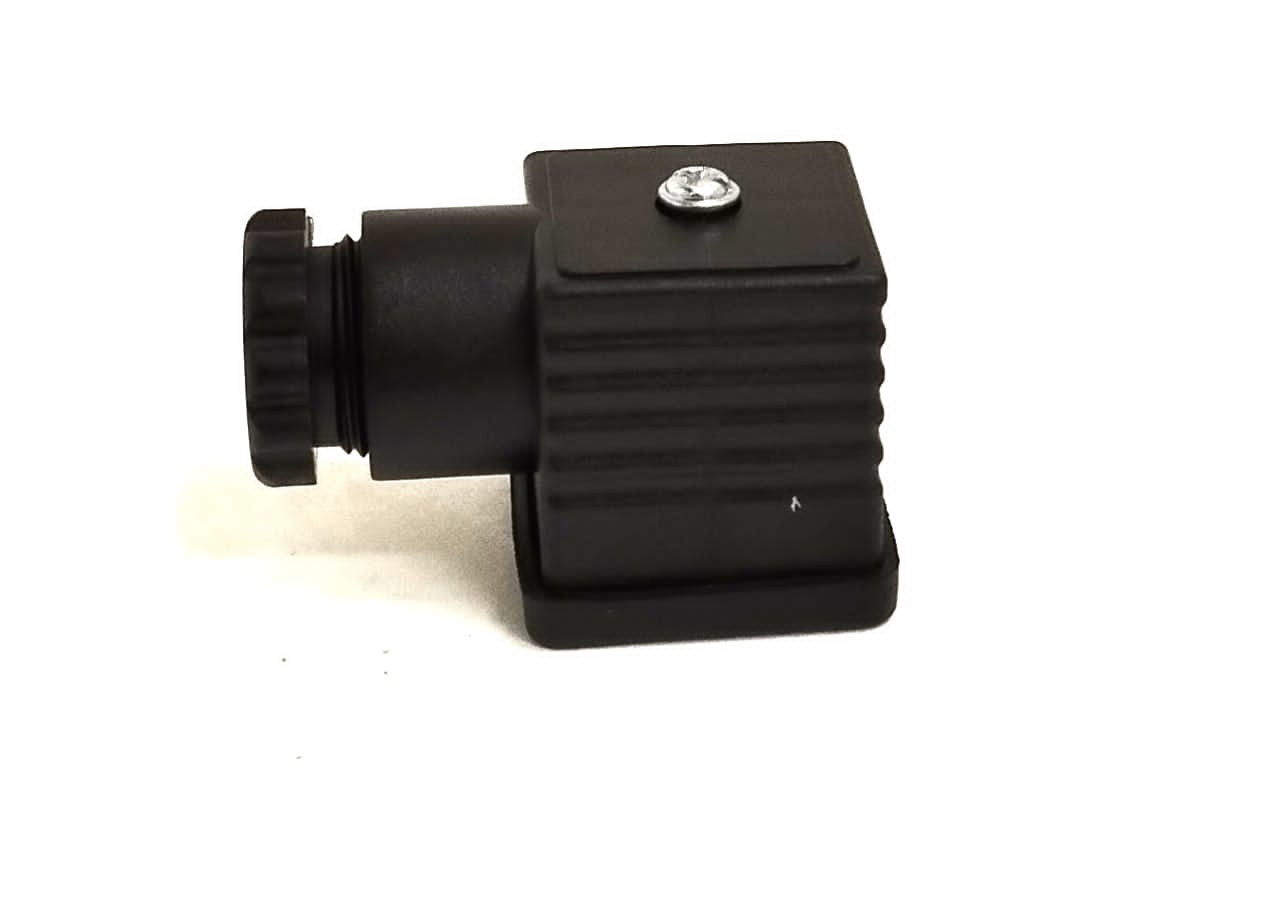

Connector for coils (1578501)

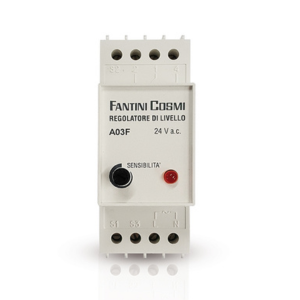

Electronic level controls with probes for conductive liquids(A03F-A03M-A04F-A04M-UA03Y)

Related products

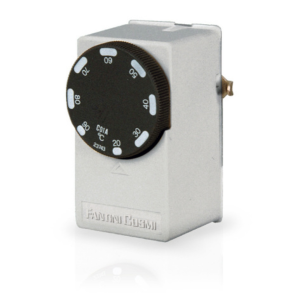

Piping and cylinder thermostats(C01A-C01AM-C01ARI)

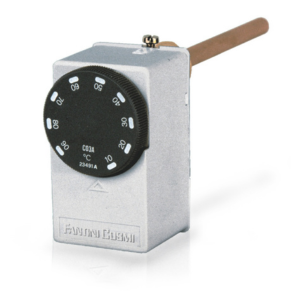

Immersion thermostats(C03A3-C03A3RI-C03B3-C03B3RI-C03C3-C08A-C08B)

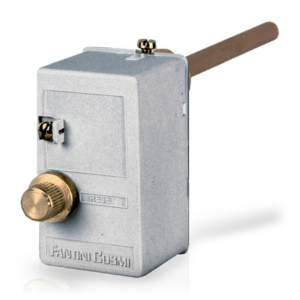

Fail safe lockout immersion thermostats and bithermostat(C06A3M-C06B3M-C07A3M-C09A3M)

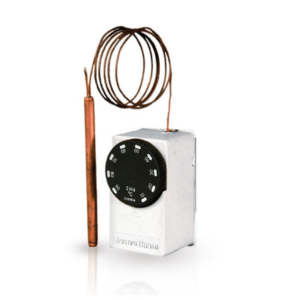

Capillary thermostats(C04A3-C04A3RI-C04A3Y-C04B3-C04B3Y-C04C2-C04C2RI-C04C2RIY-C04C2Y-C04D2-C04D2Y-C04E3-C04E3Y)

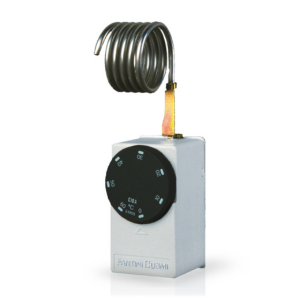

Thermostats with spiral capillary(C10A2-C10A2RI-C10A2RIY-C10A2Y-C10B2-C10B2RI-C10B2RIY-C10B2Y-C10C2-C10C2RI-C10C2RIY-C10C2Y)

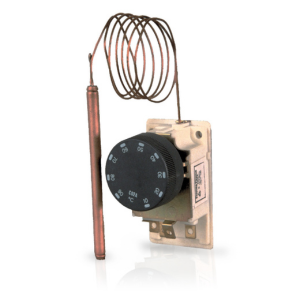

Rear panel capillary thermostats(C02A3-C02B3-C02C2-C02D2-C02E3-C02F)

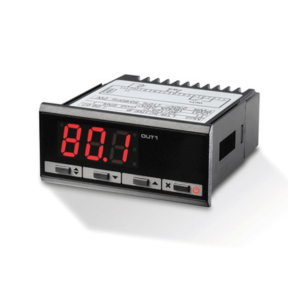

ON/OFF thermostats - P.I.D. with 1 or 2 outputs and temperature alarms management (L02AI2B-L02AM2-L02BI1A-L02BM1A-L02CI1B-L02CI2B-L02CM1-L02CM2-L02DI1B-L02DI2B-L02DM1-L02DM2)

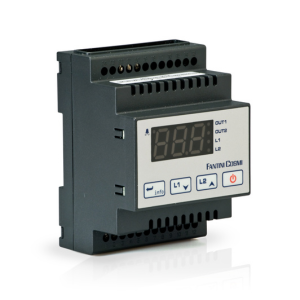

ON/OFF - P.I.D. thermostats with 1 or 2 outputs and temperature alarms management (L03BI1A-L03BI2A-L03BM1B-L03BM2B)

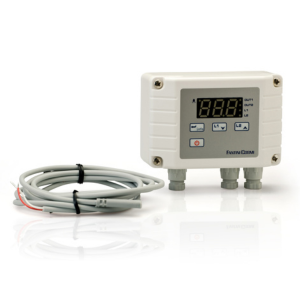

ON/OFF thermostat with 2 outputs(L04BM2A)

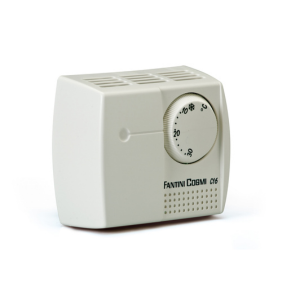

Electromechanical room thermostats with vapor expansion (C16-C16EH-C16EHL-C16I-C16IL-C16L)
