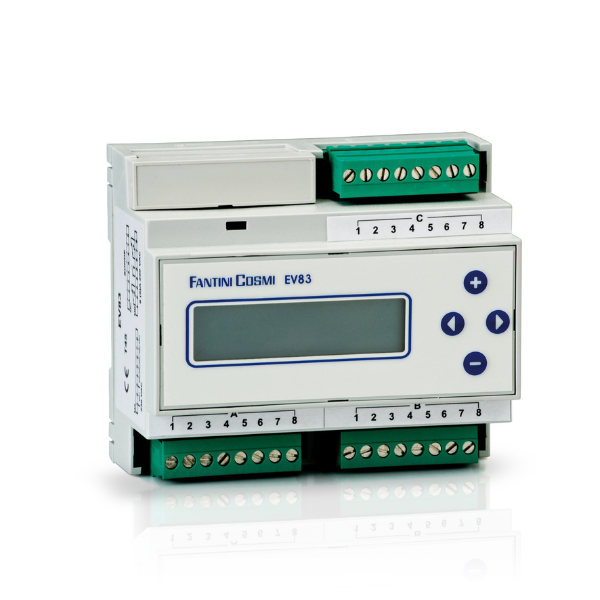

Regulation control unit for heating systems, DIN-rail mounting (6 modules)(EV83)

Brand
Fantini Cosmi - Italy

Suitable for all central heating systems, such as those related to residential buildings, schools, hospitals, factories etc. EV83 controller allows complete control of the mixing valve, or alternatively, the two-stage burner and the corresponding circulation pump.

General Features: Alphanumeric display and 4 functional keys for parameters easy setting; Data setting via menu; Digital weekly programmer clock with charge reserve of approximately 5 years; Anticondensation probe for boiler protection; Three points control output for mixing valves with servocontrol type: O24 – O34 – O35; Three points control output for motorized mixing valves type: Z20 – Z30 – ZL30 – Zl31.

Electric Features: Power supply: 230Vca 50Hz; Consumption: 3 VA; 3 output relays; Contacts rating: 5A-230Vca (resistive load)

Select Item

CODE POWER SUPPLY CONTACTS RATING OPERATION ADMISSIBLE TEMPERATURE PROTECTION DEGREE

EV83 230Vac 50 Hz 5A - 250Vac 0 ÷ 50 °C IP40 (back panel)
