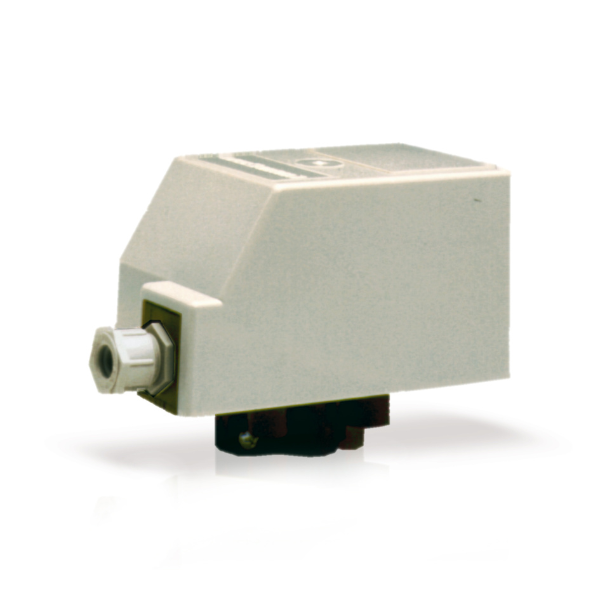

Electric servomotor for zonal valves (O33A)

Brand
Fantini Cosmi - Italy

Electric servomotor for zonal valves control.

General Features: 90° bidirectional angle of rotation coupled with 2-way and 3-way valves; Servomotor base and cap made of UL 90 V.O. self-extinguishing Lexan and fiberglass nylon; Connection terminal board; Cable gland Pg9.

Electric Features: Normally open auxiliary microswitch (NO); Contacts rating: 0,5A 250V.

Select Item

CODE ROTATION TIME FOR 90 SECONDS COUPLE ON OUTPUT SHAFT RATED TORQUE POWER SUPPLY PROTECTION DEGREE

O33A 90 seconds 4 NM 9 NM 230V 50/60Hz IP40
