Antifreeze heating cable kit with constant antifreeze power(K10C3KIT-K10C6KIT-K10C9KIT-K10C14KIT)

Brand
Fantini Cosmi - Italy

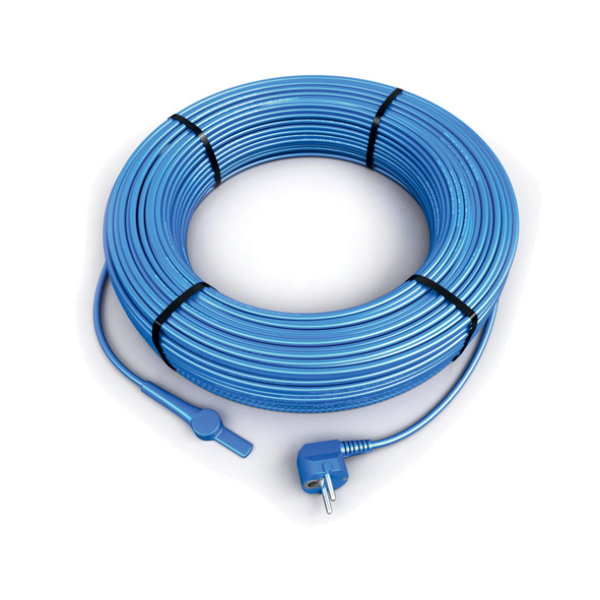

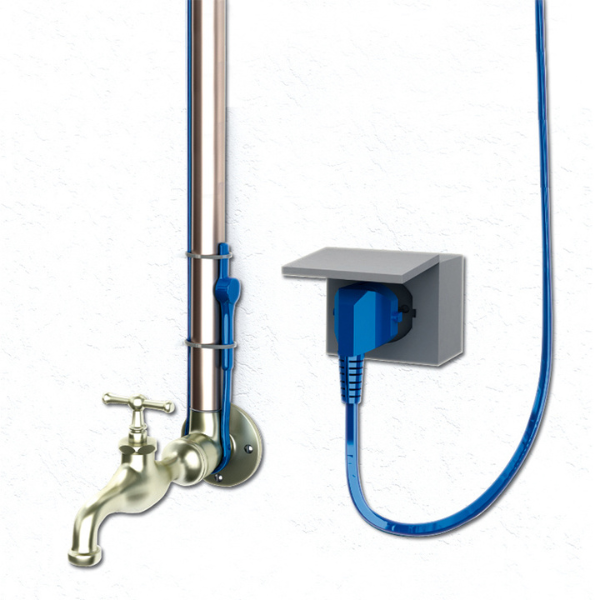

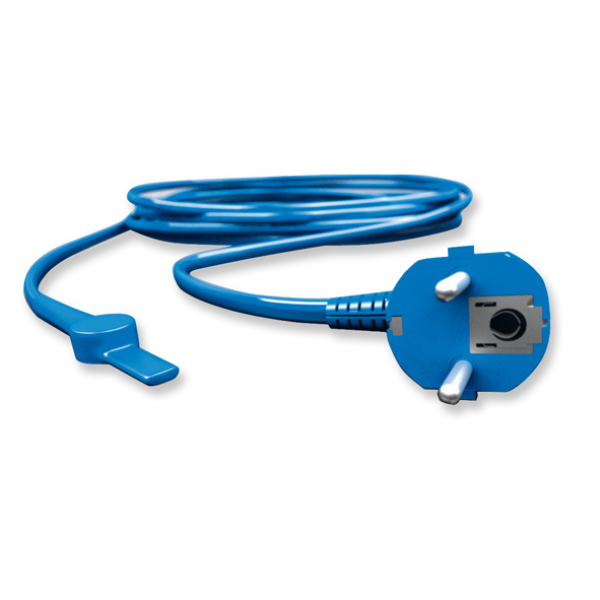

Kit consisting of a heating cable complete with a contact thermostat and power cable with Schuko plug. Constant power delivered ~10 W/m. Avoid possible damage caused by low temperatures on pipes, valves, taps, water meters, water troughs, vessels and small tanks.

General Features: Cable composition: thermoplastic material with a mechanical protection and earth braiding and an external protective sheath; Cable diameter 9 mm; Cable length: – K10C3KIT 3 m, – K10C6KIT 6 m, – K10C9KIT 9 m, – K10C14KIT 14 m; Maximum room temperature powered 65 ° C; Minimum installation room temperature -5 °C; Thermostat temperature scale ON +5°C / OFF +15°C; Minimum storage room temperature -20 ÷ -25°C; Protection rating IPX7.

Electric Features: Power supply 230V-50Hz; Constant power delivered ~10W/m

Select Item

CODE CABLE LENGTH MINIMUM INSTALLATION TEMPERATURE MAXIMUM TEMPERATURE POWERED MAXIMUM TEMPERATURE NOT POWERED

K10C14KIT 14 m -5°C 65°C 65°C

K10C3KIT 3 m -5°C 65°C 65°C

K10C6KIT 6 m -5°C 65°C 65°C

K10C9KIT 9 m -5°C 65°C 65°C
