Self-adjusting heating cables for pipelines, gutters, downspouts and roofs(K15A100-K15A1000-K15A25-K15A50-K15A500-K15A75)

Brand
Fantini Cosmi - Italy

Suitable for protection against the freezing of water pipes and to prevent the formation of ice on roofs and gutters. Power delivered ~15 W/m at 5°C.

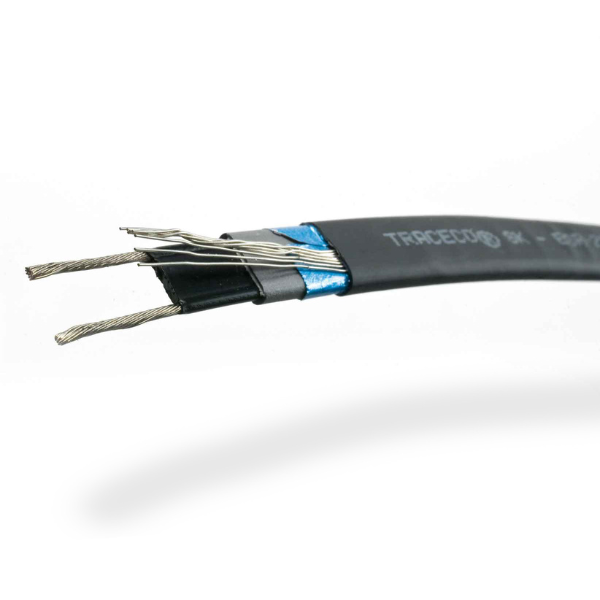

General Features: Cable composition: – 0.55 mm² conductors, – Self-adjusting conductive core, – Polyolefin insulating sheath, – Braided copper sheath, – Outer sheath in modified polyolefin; Minimum room temperature withstood -35 °C; Maximum room temperature powered 65 °C; Maximum room temperature not powered 80 °C; Minimum storage room temperature -20 ÷ -25°C; Maximum length of the heating circuit from the supply point 110 m

Electric Features: Power supply 230V-50Hz; Power delivered ~15W/m at 5°C; Calibration of the protection circuit 16A x 100 mt at 0°C

Select Item

CODE CABLE LENGTH MINIMUM INSTALLATION TEMPERATURE MAXIMUM AMBIENT TEMPERATURE POWERED MAXIMUM AMBIENTE TEMPERATURE NOT POWERED MAXIMUM LENGHT OF HEATING CIRCUIT FROM SUPPLY POINT

K15A100 100 m -35 °C 65 °C 80 °C 110 m

K15A1000 1000 m -35 °C 65 °C 80 °C 110 m

K15A25 25 m -35 °C 65 °C 80 °C 110 m

K15A50 50 m -35 °C 65 °C 80 °C 110 m

K15A500 500 m -35 °C 65 °C 80 °C 110 m

K15A75 75 m -35 °C 65 °C 80 °C 110 m
