Antifreeze heating cables with constant power for road ramps(K17C102-K17C29-K17C73-K17C82-K17C129)

Brand
Fantini Cosmi - Italy

Suitable for laying under access ramps, parking lots, pavements and walkways. Constant power delivered ~17 W/m. They require control thermostats to be used.

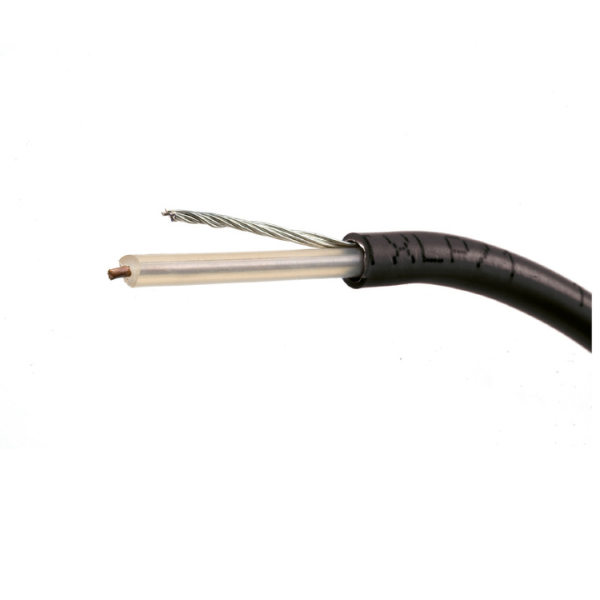

General Features: Cable composition: – 2 conductors in solid copper and tinned copper, – Outer sheath in pvc, – Aluminium foil shielding, – Tinned copper sheath; The heating cable includes: – 1 standard length of heating cable, – 2 cold tails; Minimum installation room temperature 5 °C; Maximum room temperature 65 °C; Minimum storage room temperature -20 ÷ -25°C

Electric Features: Power supply 230V-50Hz; Constant power delivered ~17W/m; Total power absorbed at 230V: – K17C29 510 W, – K17C73 1260 W, – K17C82 1530 W, – K17C102 1750 W, – K17C129 2200 W

Select Item

CODE CABLE LENGTH TOTAL POWER ABSORBED AT 230V HEATED SURFACE WITH 130W/M MINIMUM INSTALLATION ROOM TEMPERATURE MAXIMUM ROOM TEMPERATURE

K17C102 102 m 1750 W 9 m² 5 °C 65 °C

K17C129 124 m 2200 W 11 m² 5 °C 65 °C

K17C29 30 m 510 W 3 m² 5 °C 65 °C

K17C73 74 m 1260 W 6 m² 5 °C 65 °C

K17C82 89 m 1530 W 7 m² 5 °C 65 °C
