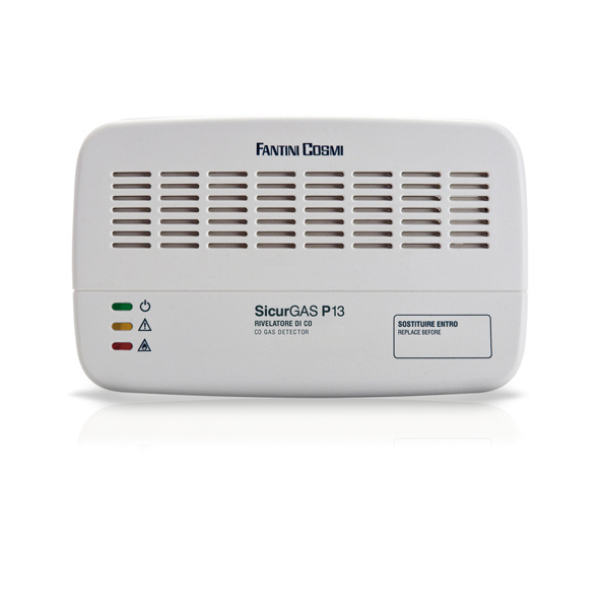

CO carbon monoxide detector with electrochemical cells for domestic use (Sicurgas P13)

Brand
Fantini Cosmi - Italy

Sicurgas P13 is a device that makes it possible, by means of a very sensitive probe (i.e. sensor), to detect the presence of carbon monoxide (CO) concentrations in domestic environments.

General Features: Spare catalytic sensor to detect CO carbon monoxide; Shock proof body; Internal luminous and acoustic alarms; 3 warning LED: Green LED: the device works properly, Yellow LED: malfunction, Red LED: ALARM, CO carbon monoxide is being detected; Sensor life: 5 years from the production date (see replacement date on the device); The relay of the device is a “sealed” type and filled with inert gas that guarantees the absence of sparks when commuting.

Electric Features: Power supply: 230Vca 50Hz; Consumption: 4 VA; Output through electromagnetic relay; Contacts rating: 6(2)A – 250Vca.

Select Item

CODE GAS TYPE POWER SUPPLY CONTACT RATING TEST BUTTON PROTECTION DEGREE

P13 CO carbon monoxide 230Vac - 50Hz 6(2)A - 250Vca Yes IP42
