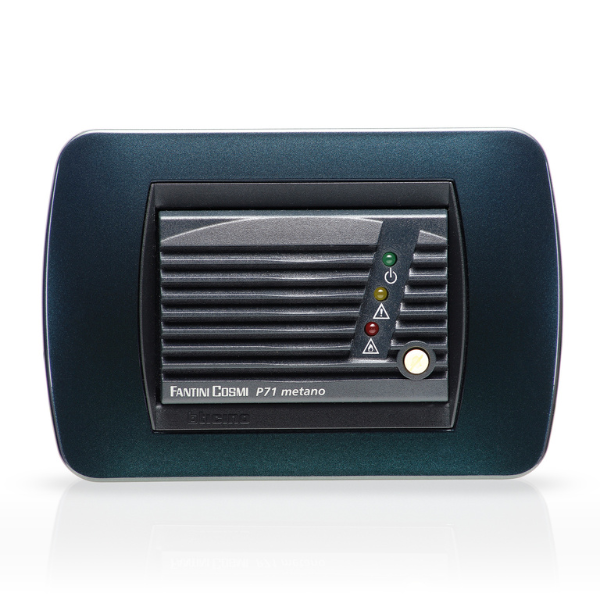

Flush mounting gas leak detectors for methane and LPG for civil environments (Sicurgas P71-P71B-P71C-P72)

Brand
Fantini Cosmi - Italy

Sicurgas is a device that, through a sensitive sensor, detects methane gas concentration (P71) and LPG concentration (P72) in civil environments.

General Features: Shockproof insulating material casing; Semiconductor sensor for gas detection; Sicurgas has three warning lights: green LED – indicates that the detector works properly, yellow LED – indicates detector failure, red LED – indicates the gas presence in the environment (ALARM); The used relay is sealed and filled with inert gas, which ensures in any case the absolute absence of sparks during switching phases.

Electric Features: Power supply: 230Vac – 50Hz; Consumption: 3 VA; Output through electromagnetic relays; Contacts rating: 5(3)A – 250Vac.

Select Item

CODE GAS TYPE & COLOR POWER SUPPLY CONTACT RATING TEST BUTTON OPERATING TEMPERATURE PROTECTION DEGREE

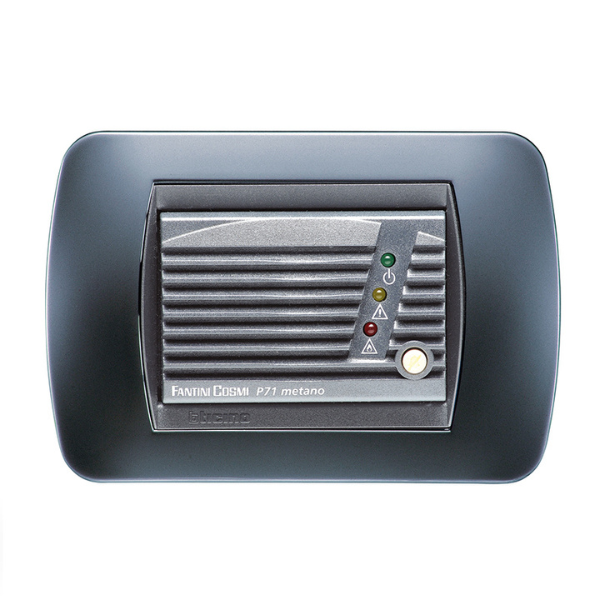

P71 Methane Anthracite 230Vac - 50Hz 5(3)A - 250Vac Yes - pull cord 0 ÷ 40 °C IP42

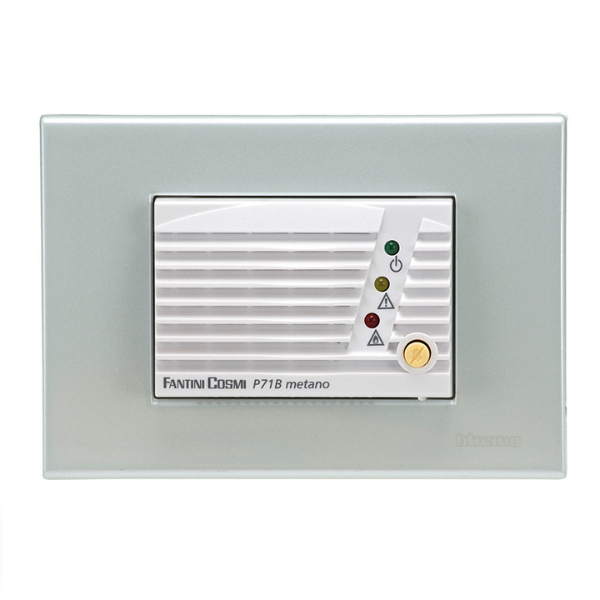

P71B Methane White 230Vac - 50Hz 5(3)A - 250Vac Yes - pull cord 0 ÷ 40 °C IP42

P71C Methane Silver 230Vac - 50Hz 5(3)A - 250Vac Yes - pull cord 0 ÷ 40 °C IP42

P72 LPG Anthracite 230Vac - 50Hz 5(3)A - 250Vac Yes - button 0 ÷ 40 °C IP42
