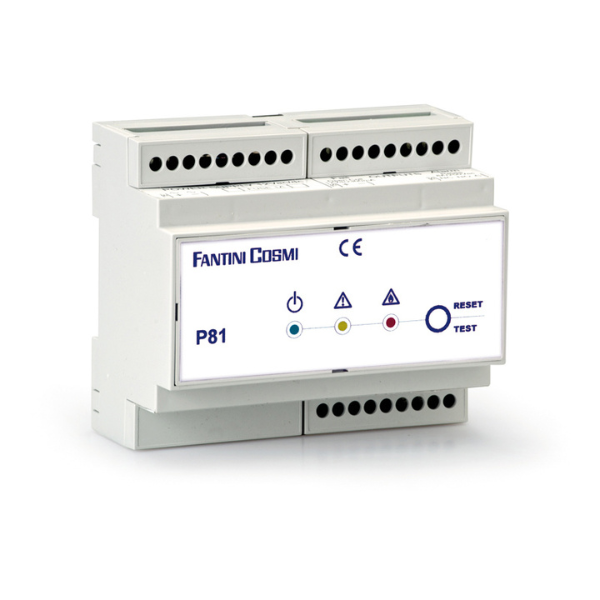

Electronic control unit for gas leak detection with 1 detection zone (P81)

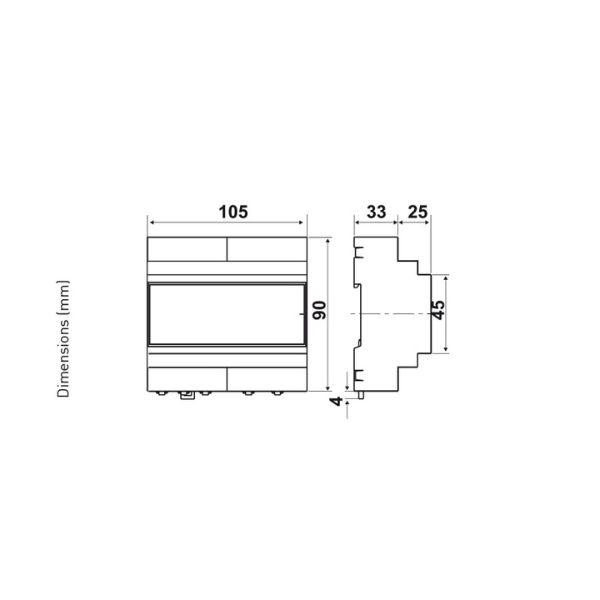

General Features: Light signals:  1 red LED, power supply ON; 1 yellow LED, failure; 1 red LED, gas alarm; Acoustic signals: 1 buzzer with sound intensity > 60db at 1m; 1 button to reset the alarms and for testing the probe; Self-extinguishing plastic housing; Dimensions: 105 x 90 x 58 mm – 6 modules complies with DIN 43880 standard; Unit weight: 0.185 kg; Rear panel mounting on Omega DIN EN 50022 rail; Protection: IP20; IP40 when is properly installed in an electrical box; Environment temperature: 0 ÷ 50 °C; Environment humidity ±90% U.R. without condensation.

Electric Features: Power supply: 12 Vac/dc ± 10%; Absorption: approximately 160mA (320mA) with a single probe; 460mA (620mA) with faulty probe and output; Connection with 2 terminals of 2.5 mm²; Protection: input – fuse power supply 1A 5x20mm; 1 input for sensors S81, S82, S83, or probes ATEX S84, S85, S86 (different gas types); Connection to the probe with 3 terminals of 2.5 mm²: C (-12…24V); S (+4…20mA); A (+12…24V); Maximum connection length 50 m; Section of 3 conductors: 1.5 mm²; Alarm output: n.1 relay with 1 SPDT contact 8A 250Vac; Failure output: n.1 open collector 12Vdc / 300mA max; Outputs connections: n.3 terminals of 2.5 mm² for relay C-NC-NO; n.2 terminals of 2.5 mm² for open collector.
